Equipment

Power Tools

Ventilation fans, saws, hydraulic extrication tools, generators, and chainsaws with specs.

01

Ventilation Fans

SpecValue

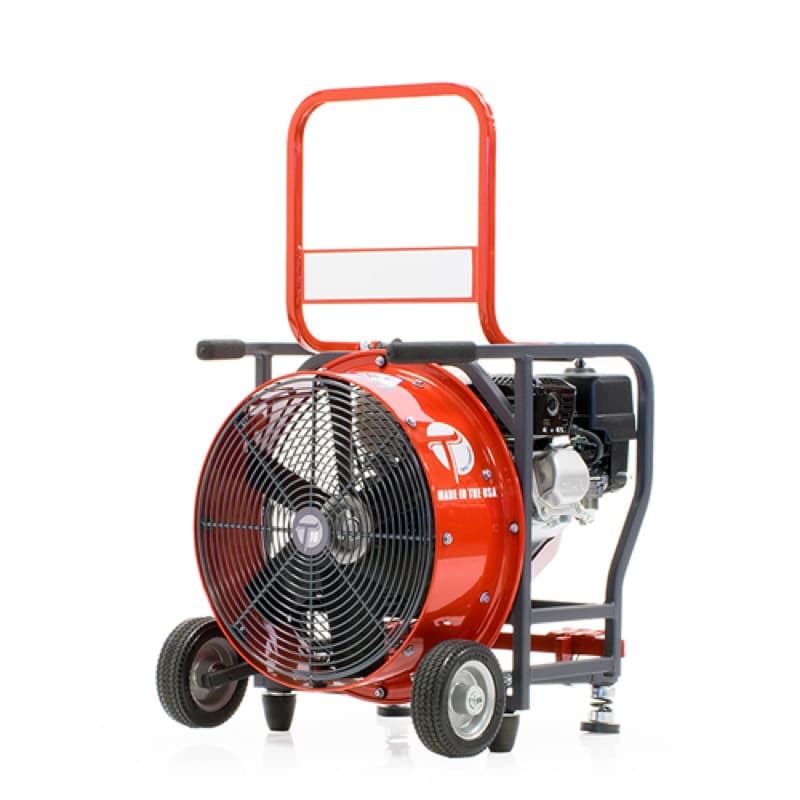

​Tempest BD 18-H-5.5
EngineHonda 5.5HP
Fan18" blade
CFM15,023 cfm @ 3,870 rpm
Weight85 lbs
Filter2 stage air filter
Cycle4 stroke, belt driven
FuelStraight gas
SpecValue
​Tempest BD 24-H-6.5
EngineHonda 6.5HP
Fan24" blade
CFM18,130 cfm @ 3,175 rpm
Weight92 lbs
Filter2 stage air filter
Cycle4 stroke, belt driven
FuelStraight gas
SpecValue

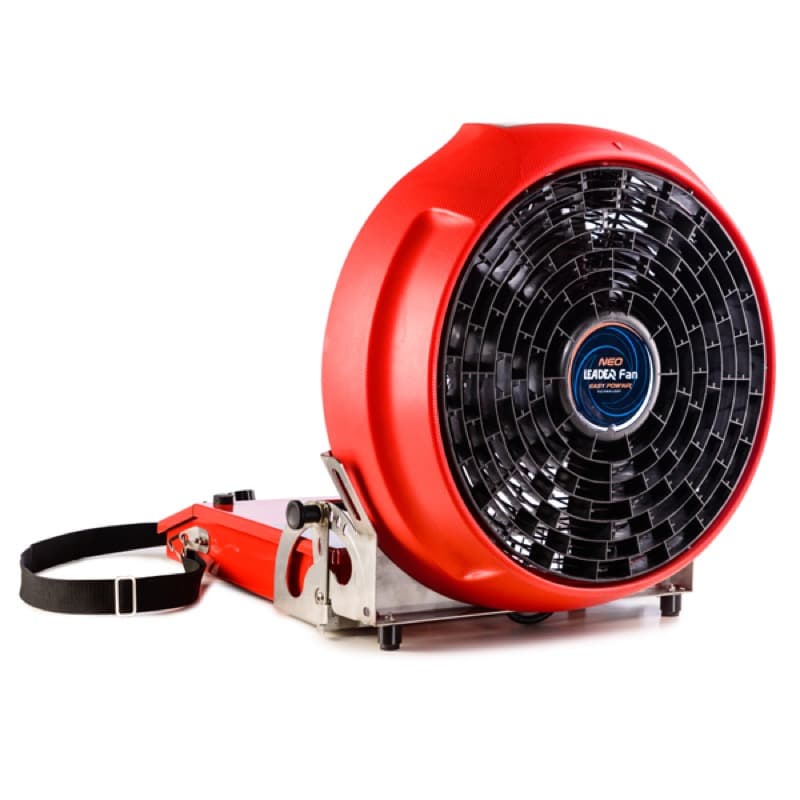

​BATfan 45
Engine600W
Fan16.5" blade
CFM14,155 cfm
Weight62 lbs
PowerBattery powered
Runtime45 min @ full speed
Charge100% in 10 hours
02

Saws & Cutting

SpecValue

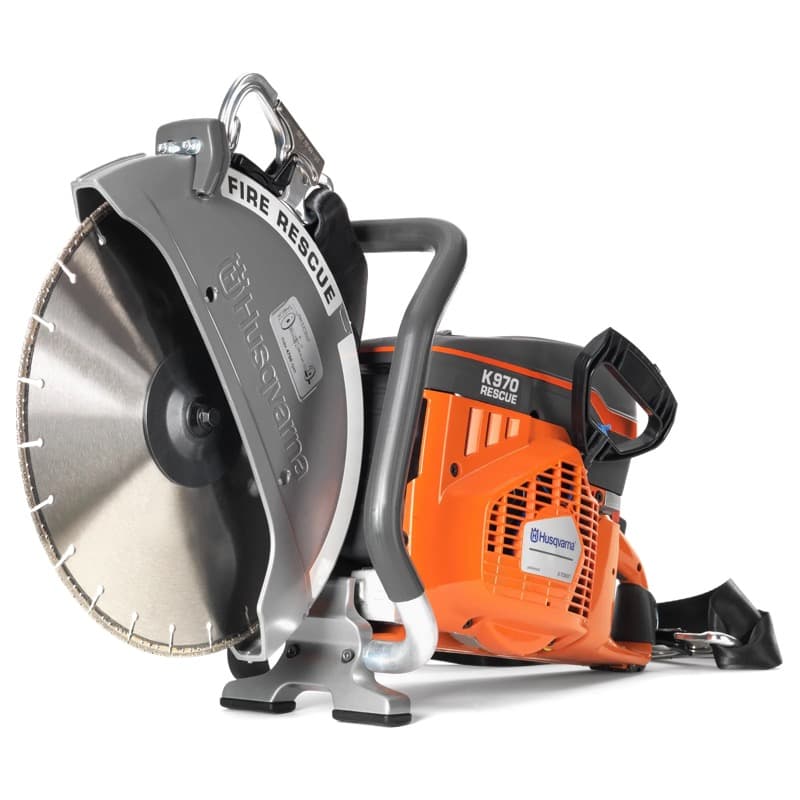

​Partner K960 Rescue (Husqvarna)
Engine6.5 hp
Blade14" diamond blade
Weight23.4 lbs
Fuel50:1 mix
DriveBelt driven
Filter2 stage (oiled foam plastic & paper)
SpecValue

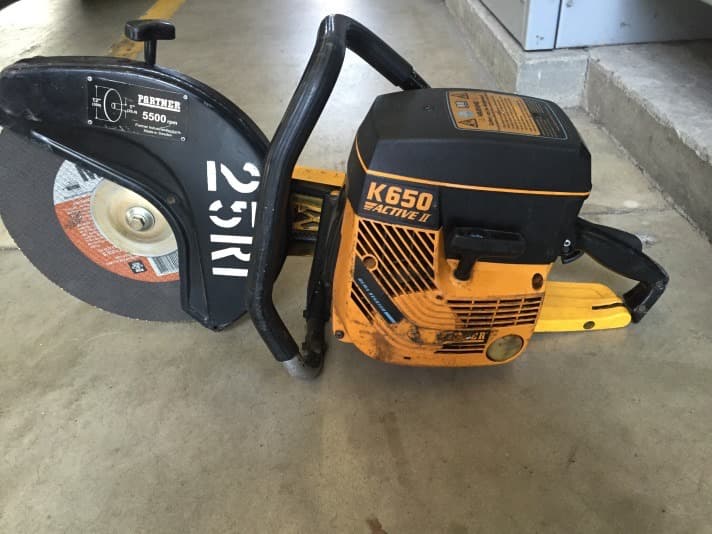

​Partner K650
Engine71 cc motor
Blade12" abrasive disc or carbide tip
Weight19.6 lbs
Fuel50:1 mix
DriveBelt driven
Filter2 stage (oil main / backup paper)
NoteCarbide teeth can't be missing 2 in a row or 3 total
SpecValue

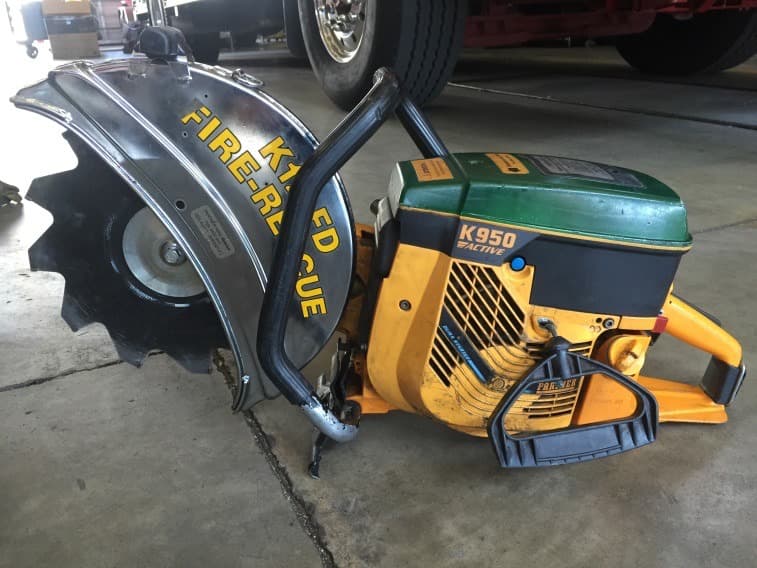

​Partner K950
Engine93.6 cc motor
Blade12" or 14"
Cut Depth4" with 12" blade, 5" with 14" blade
Weight21.8 lbs
Fuel50:1 mix
DriveBelt driven
Filter2 stage (oil main / backup paper)
NoteCarbide teeth can't be missing 2 in a row or 3 total
SpecValue

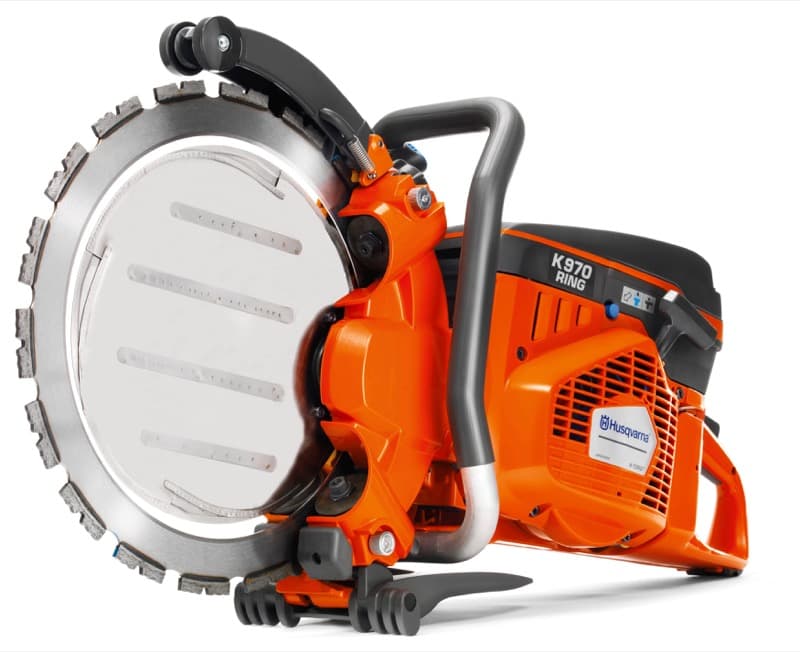

​K 970 Ring
Engine6.5 hp
Blade14"
Cut Depth10.6"
Weight30.4 lbs
Fuel50:1 mix
NoteNo arbor nut allows for deeper cut. Heavy Rescue specific.
SpecValue

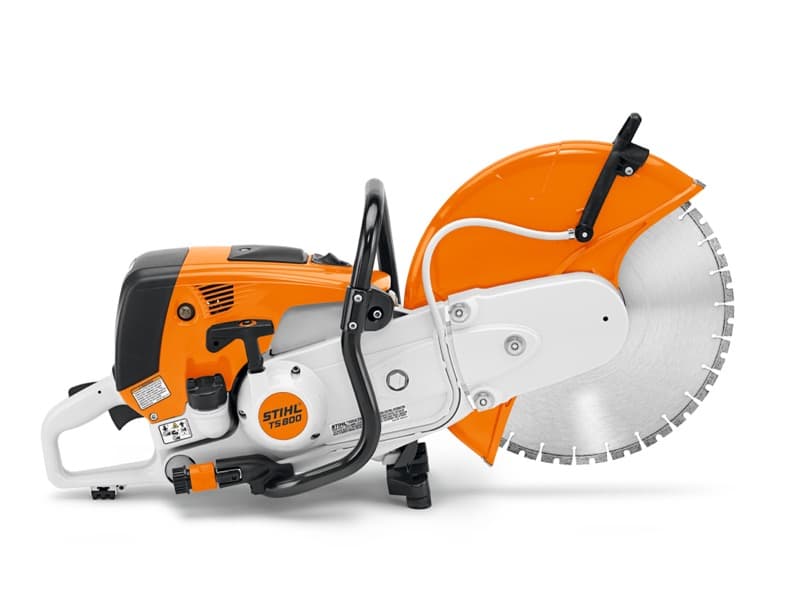

​STIHL TS 800
Engine6.7 hp
Blade16"
Cut Depth5.6"
Weight28 lbs
Fuel50:1 mix
NoteHeavy Rescue specific.
SpecValue

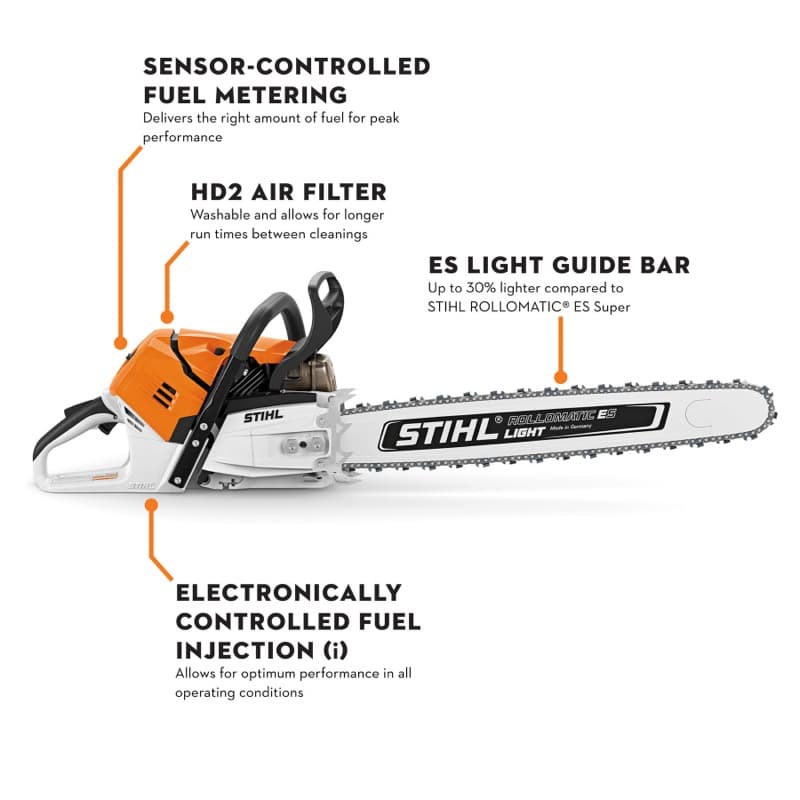

​Stihl Chainsaw (044, 440, 441, MS460, MS 500i)
Engine2 stroke / single cylinder
Power5 hp (6.7 HP for 500i)
RPM2,500 idle (3,000 for 500i), 13,500 max
Bar20"
Teeth65 drive teeth, 32 cutting teeth
OilerAutomatic chain oiler
Filter3 stage (pre, main, spill)
Oil30 wt bar oil
Fuel50:1 mix
SafetyChain brake
NoteCan't be missing 3 in a row or 5 total
SpecValue

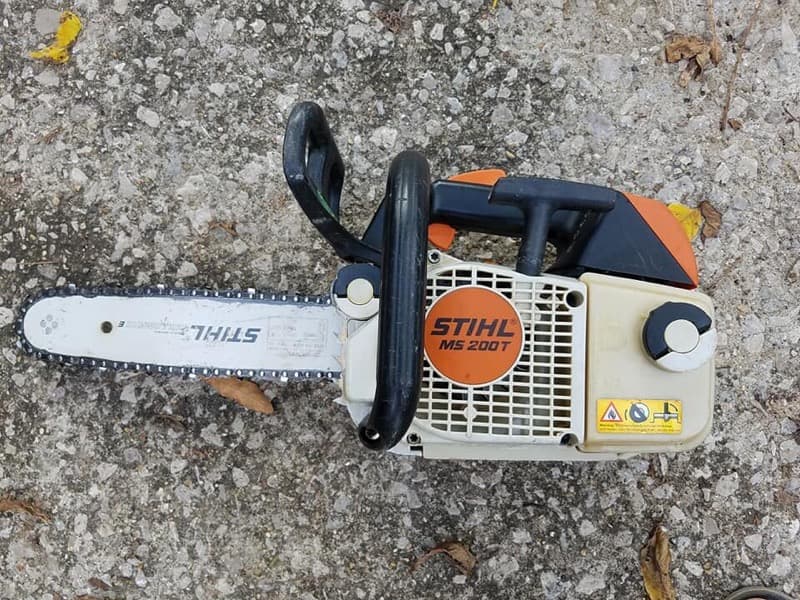

​Stihl Small Chainsaw (MS200T)
Engine2 stroke / single cylinder, 35.2cc
Weight7.9 lbs
Bar12"
OilerAutomatic chain oiler
SpecValue

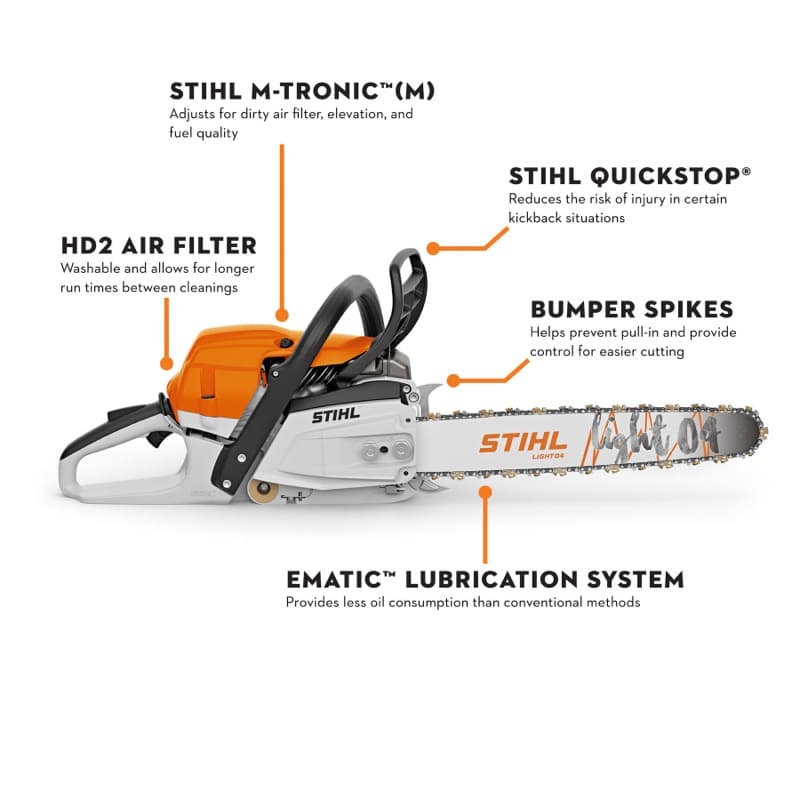

​Type III Chainsaw (MS261)
Engine2 stroke / single cylinder, 50.2cc
Weight10.8 lbs
Bar20"
FeaturesDecompression valve, adjustable automatic oiler
03

Hydraulic / Extrication

SpecValue

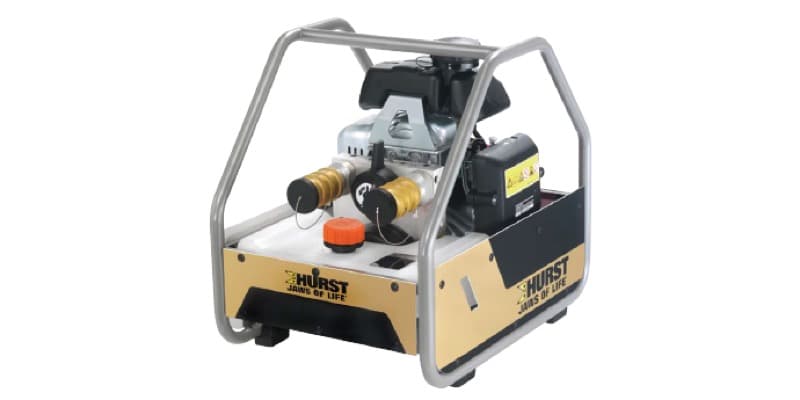

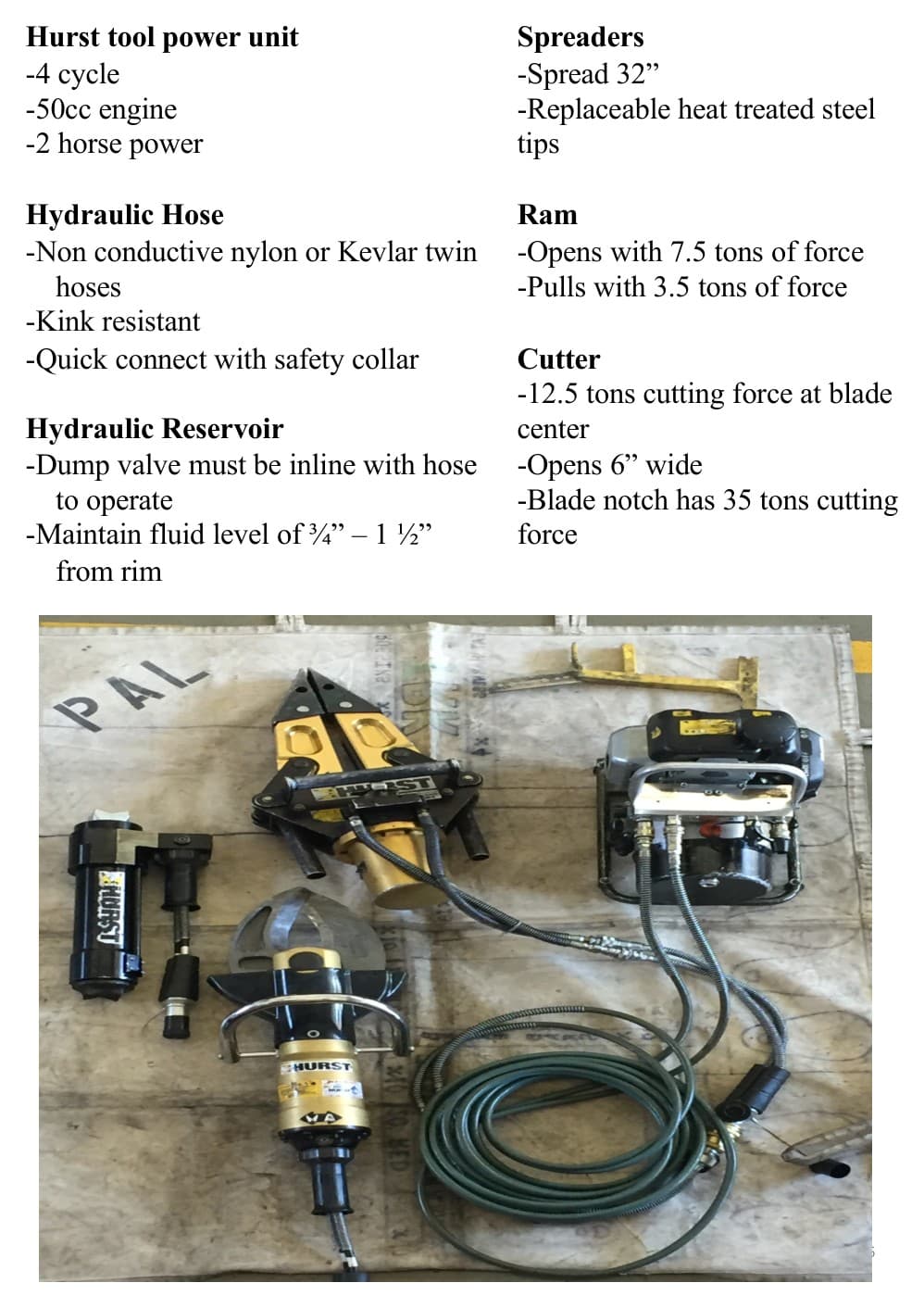

​Hurst Tool Power Unit
Engine4 cycle, 50cc, 2 hp
HoseNon-conductive nylon or Kevlar twin hoses, kink resistant, quick connect with safety collar
ReservoirDump valve must be inline with hose to operate. Maintain fluid level 3/4" - 1 1/2" from rim.
SpecValue

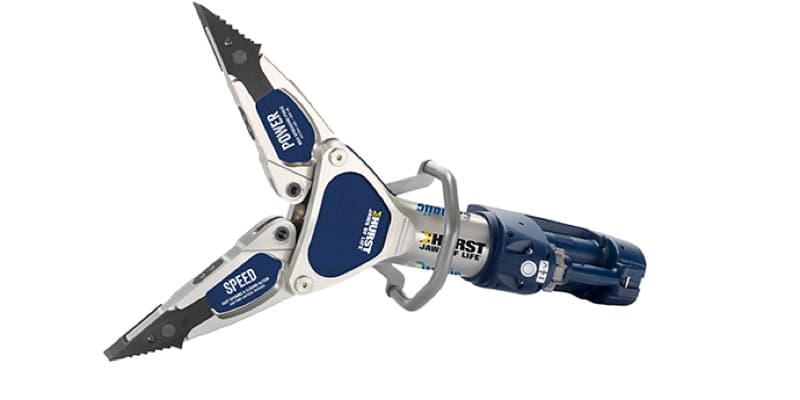

​Hurst Spreaders
Spread32"
TipsReplaceable heat treated steel
SpecValue

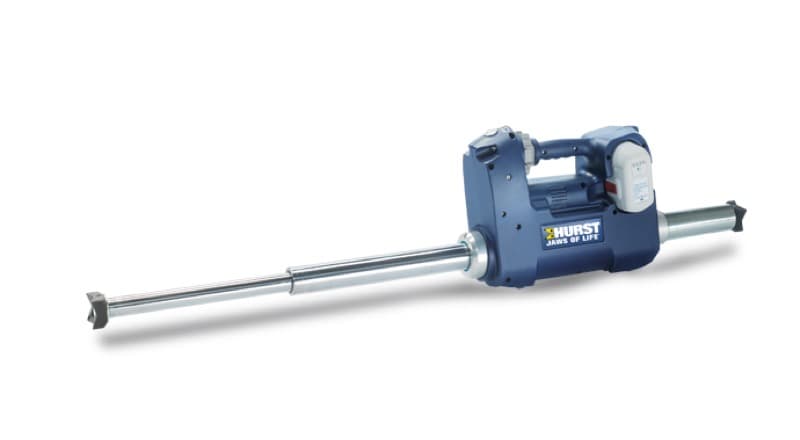

​Hurst Ram
Open Force7.5 tons
Pull Force3.5 tons
SpecValue

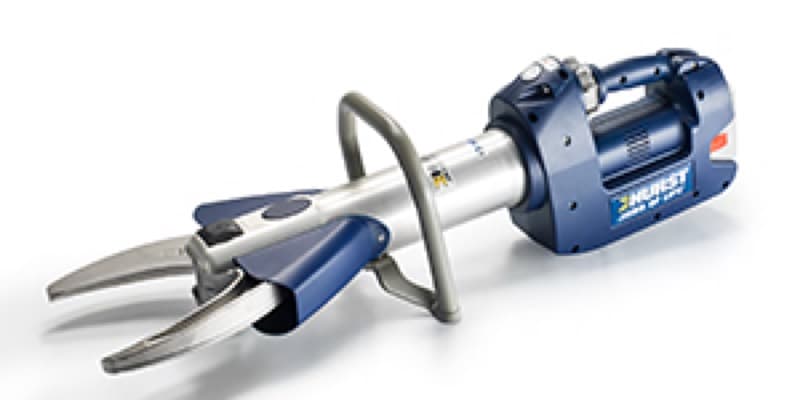

​Hurst Cutter
Cutting Force12.5 tons at blade center
Opening6" wide
Blade Notch Force35 tons
SpecValue

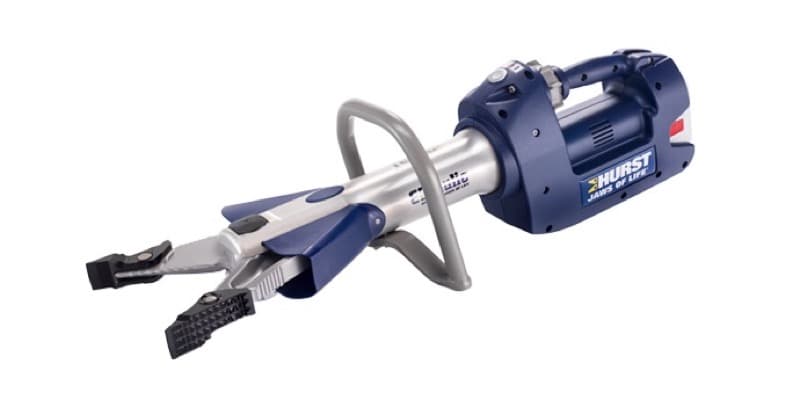

​Battery Hurst "Combi Tool" (SC357 E2)
Weight41 lbs
Spread Distance14.5"
Max Spread Force225,483 lbs
Cutter Opening10.8"
PowerBattery powered internal hydraulics
NoteCuts and spreads
04

Generators

SpecValue

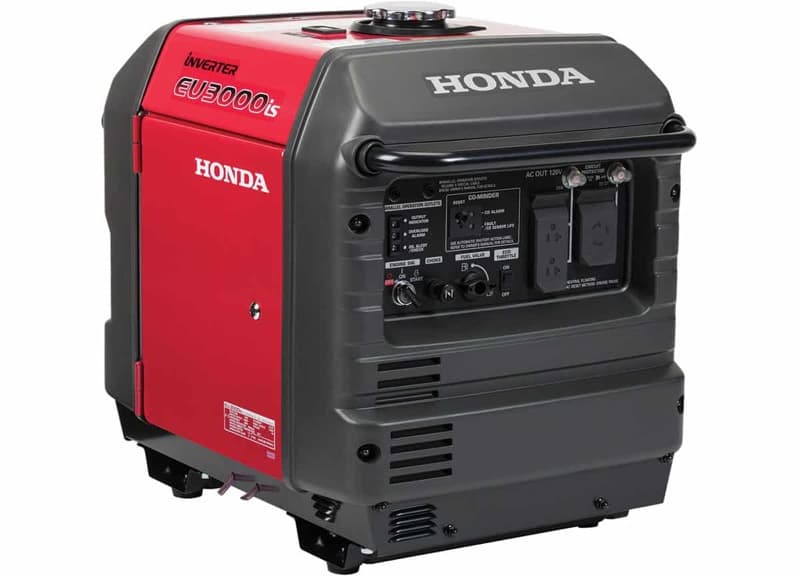

​Honda 3000 Generator
Engine196cc, 4 cycle
Oil30 wt
FuelStraight gas
AC Output120V, 3000W max (25 amp), 2600W continuous (21.7 amp)
Outlets1x 25A twist lock, 2x three-prong GFCI, 2x 12V DC @ 12 amp / 144W
Load Capacity10 Circle D lights / Skill saw and 1 Circle D
